Shepherds Hut Chassis

Shepherd's Hut Chassis

Second to none

Shepherd's Hut Chassis

Steerable Chassis

Steerable Shepherds Hut chassis

Built from box section steel
Pre-drilled for easy floor installation
Removable wheels, turntable and draw bar

Chassis comes with traditional cast iron wheels forged in the UK to ensure a top-quality product

Wheel configurations include:

20’’ or 27’’ wheels on the outside of the frame
23’’ wheels underneath the chassis

All steerable chassis come painted in a black oxide chassis paint

Prices start from £2760 + vat

Enquire Here

Shepherd's Hut Chassis

Fixed Chassis

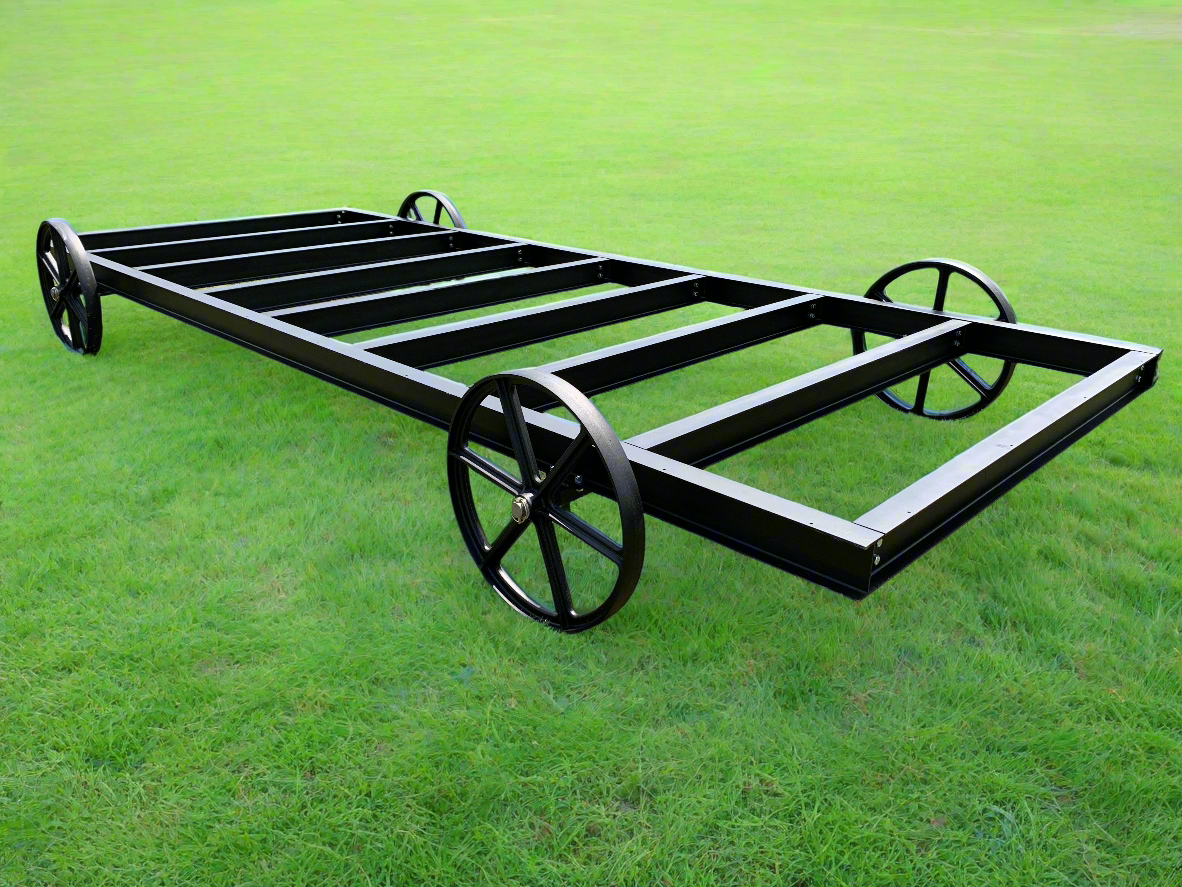

Fixed axle shepherds hut chassis

Delivered as a bolt together frame using UBs (universal beams) that bolt together.

These rolling chassis are not steerable but can be lifted one end to manoeuvre.

Chassis comes with:

All fixings required for assembly
Wheel configurations:

Top Tip!

For builds that have waste water connections, we recommend selecting 32’’ wheels to ensure enough room to get under the chassis to connect this up.

Chassis comes galvanised and wheels come painted in black oxide chassis paint

Prices start from £1950 + vat

Enquire Here

Shepherd's Hut Chassis

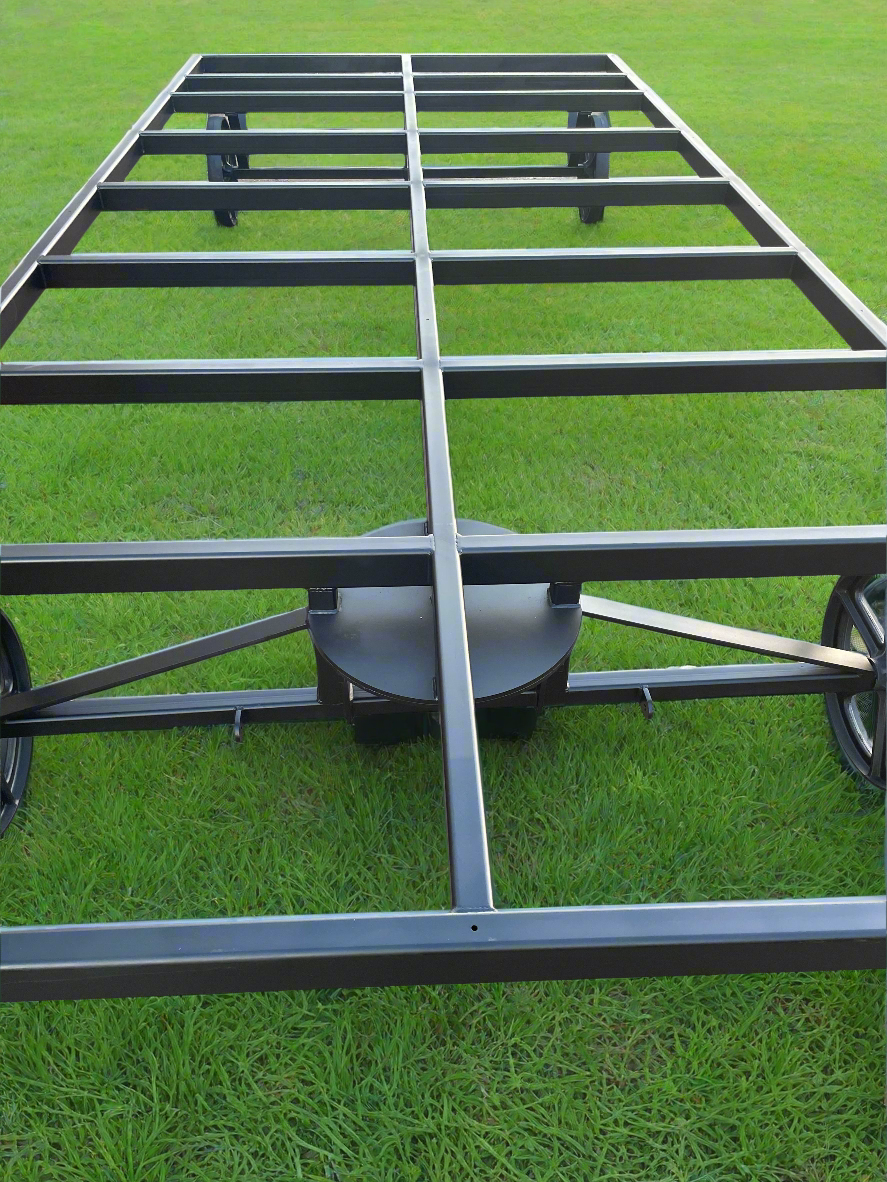

Heavy Duty Steerable Chassis

Built from Rectangular section steel
Pre-drilled for easy floor installation
Removable wheels, turntable and draw bar

Chassis comes with traditional cast iron wheels forged in the UK to ensure a top-quality product

Wheel configurations include:

20’’ or 27’’ wheels on the outside of the frame
23’’ wheels underneath the chassis

All steerable chassis come painted in a black oxide chassis paint

Prices start from £3800 + vat

Enquire Here

Shepherd's Hut Chassis

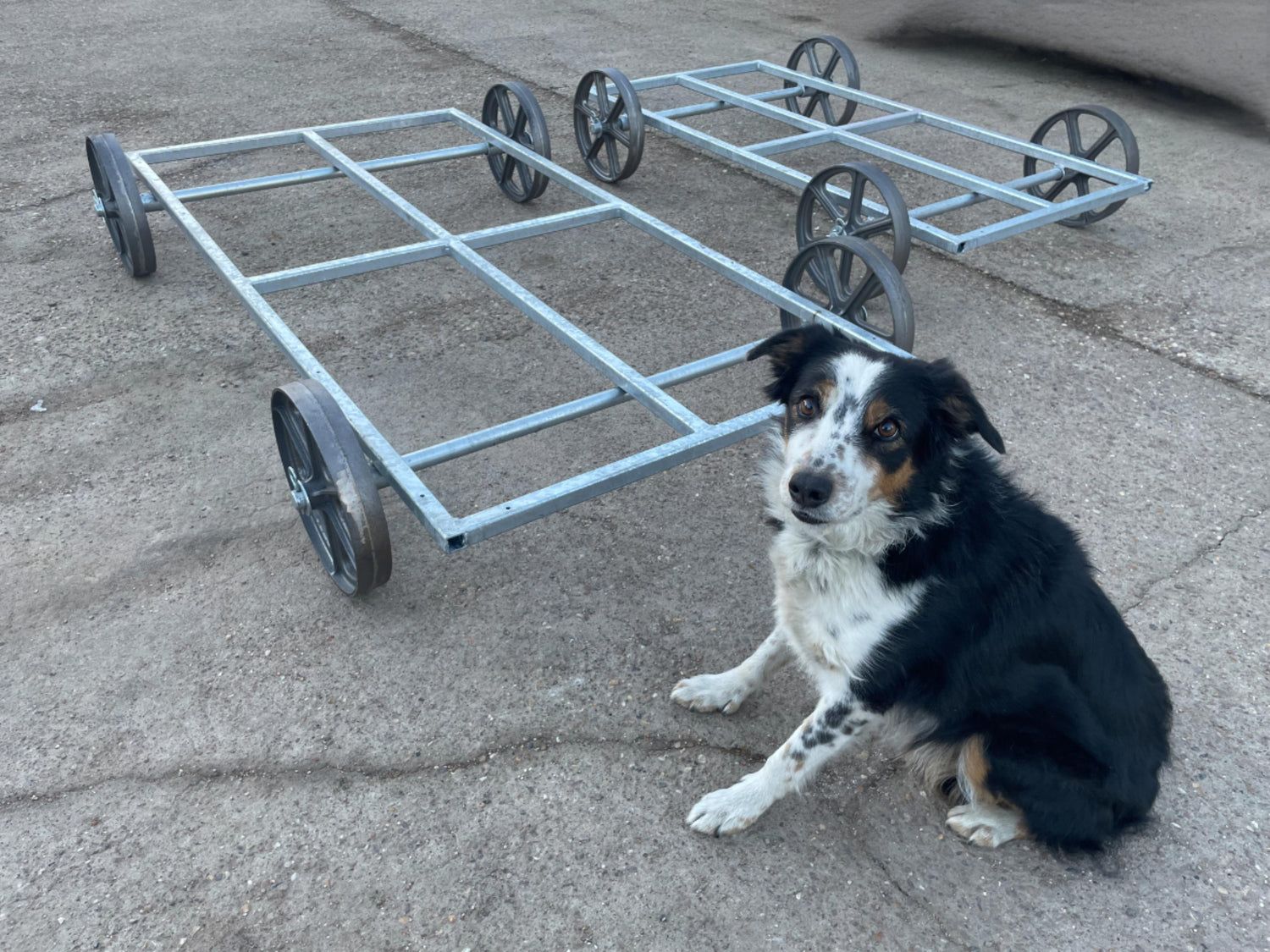

Dog Kennel / Chicken Coop Chassis

Built from Box section steel with solid bar axles
Pre-drilled for easy floor installation
Removable wheels and Axles

Chassis comes with traditional cast iron wheels forged in the UK to ensure a top-quality product,

Chassis come galvanised

Wheels are 12inch and come painted in black oxide chassis paint

Prices start from £525 + vat

Enquire Here

Shepherd's Hut Chassis

Chassis Kits

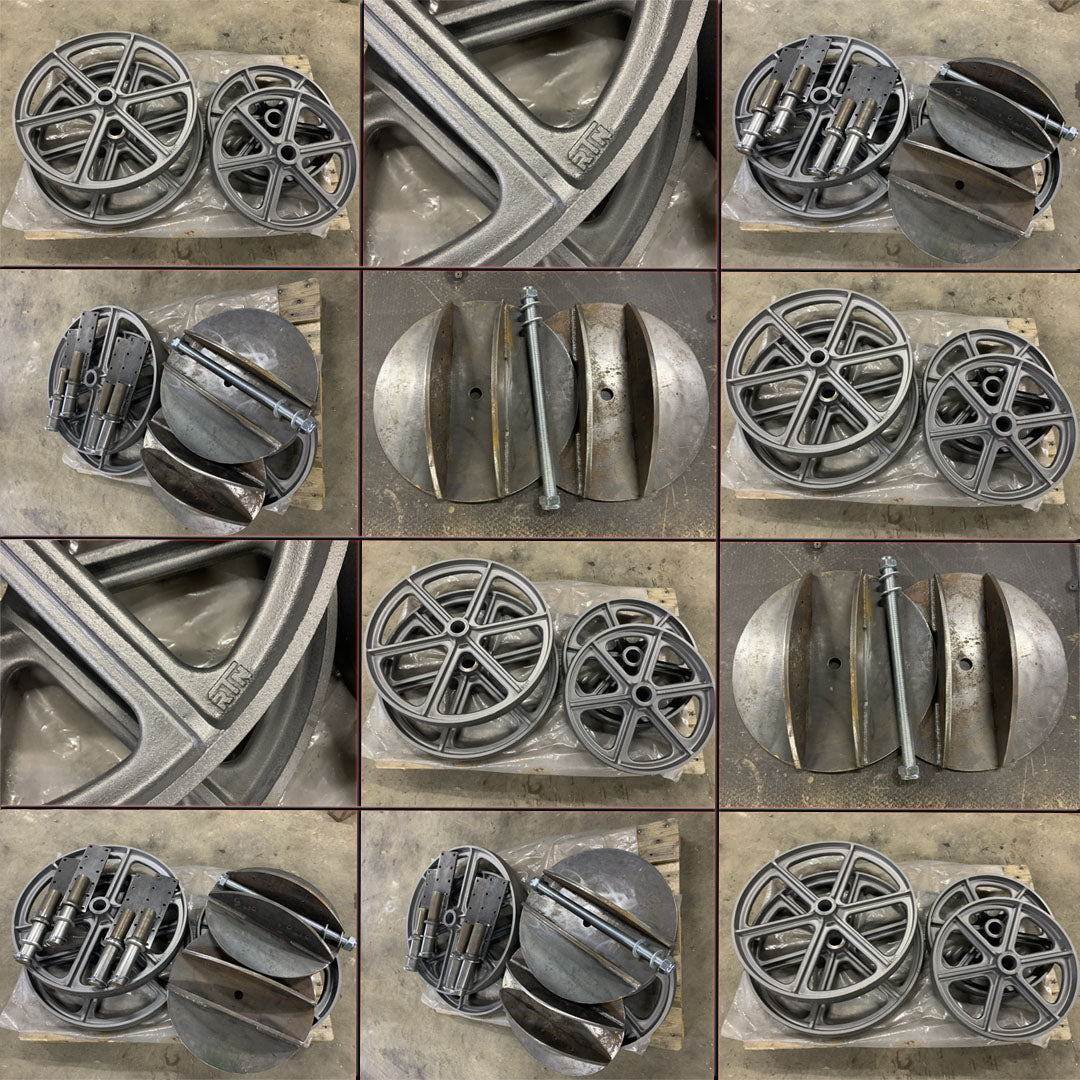

Chassis kits can include the following:

Stub axles with stainless steel washers and pins
Turn Table plates spaced to take a 120mm timber axle with grease nipples
Drawbar and mounting plates
Wheels

Enquire Here

Shepherds Hut Chassis

Shepherd's huts can serve many purposes, from providing a home office in the garden away from the
hustle and bustle of a busy home to serving as an extra bedroom or living accommodation for an
expanding family, or even a space for friends and family to stay when they visit.

These huts can also hold significant commercial value, offering expansion possibilities for hotels, bed-
and-breakfast establishments, or self-catering accommodations.

We are fortunate to have provided chassis for a variety of uses, including offices, reading rooms,
accommodation, potting sheds, greenhouses, hair salons, beauty therapy rooms, and even saunas.
The possibilities are endless, and with the added bonus of being a movable structure, you never have
to worry about leaving it behind.
